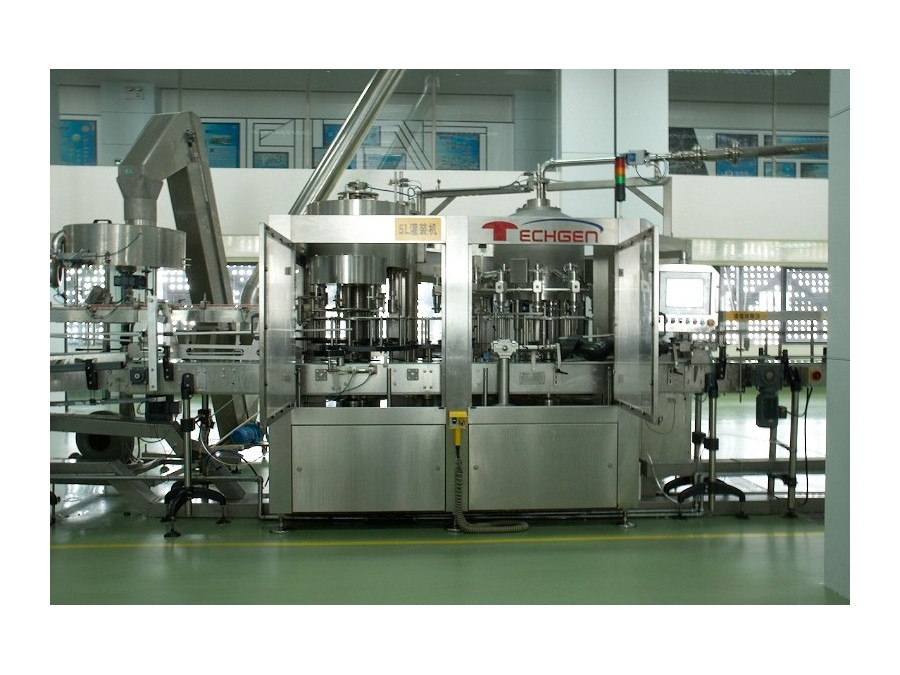

Edible oil filling machine

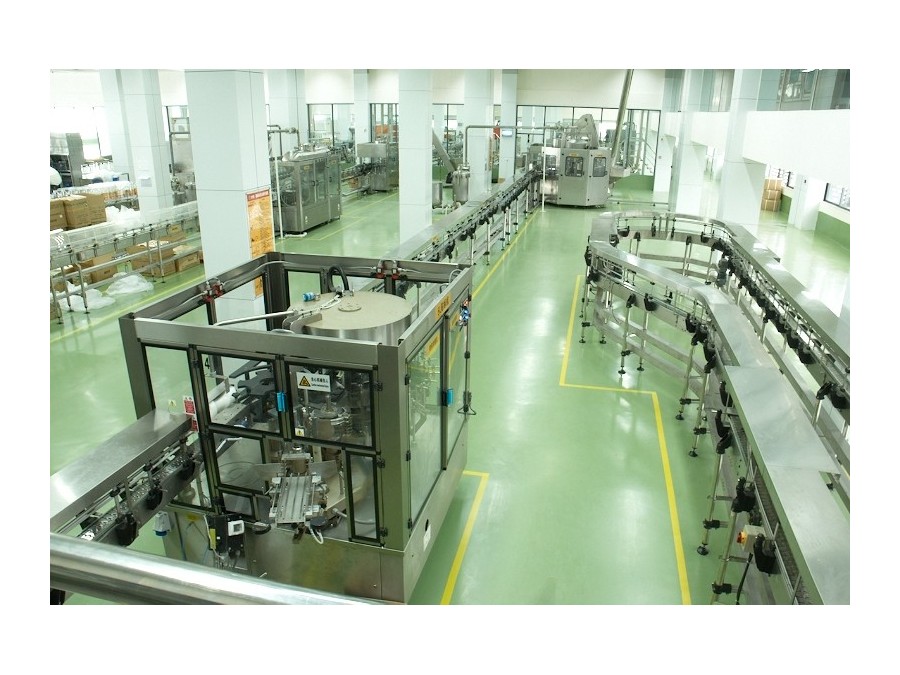

Edible oil filling production line

1. Straight line bottle blowing machine , Rotary bottle blowing machine

2. Labeling machine ( Cold glue stickers OPP Labeling machine )

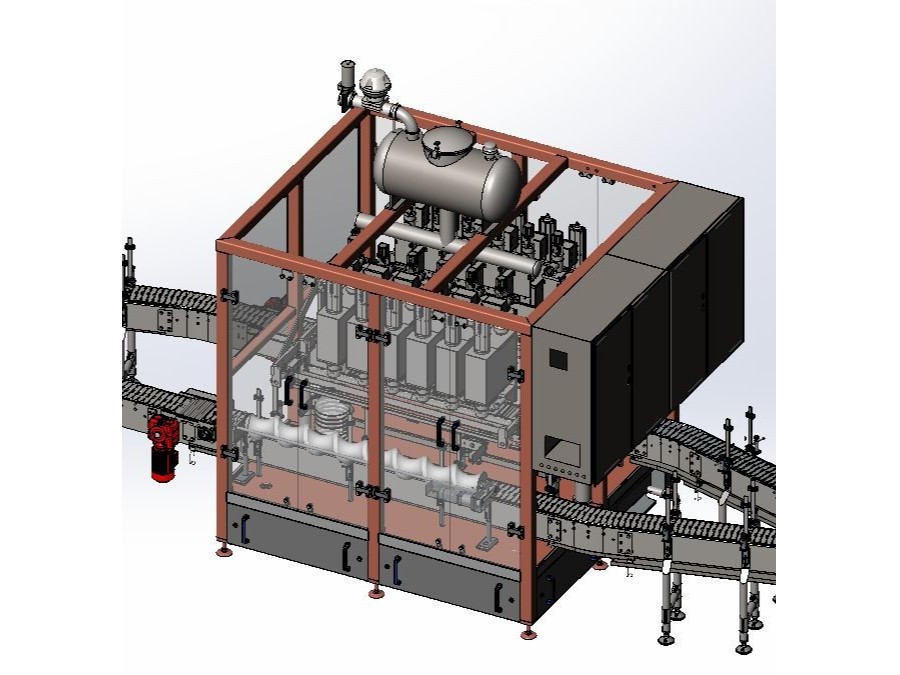

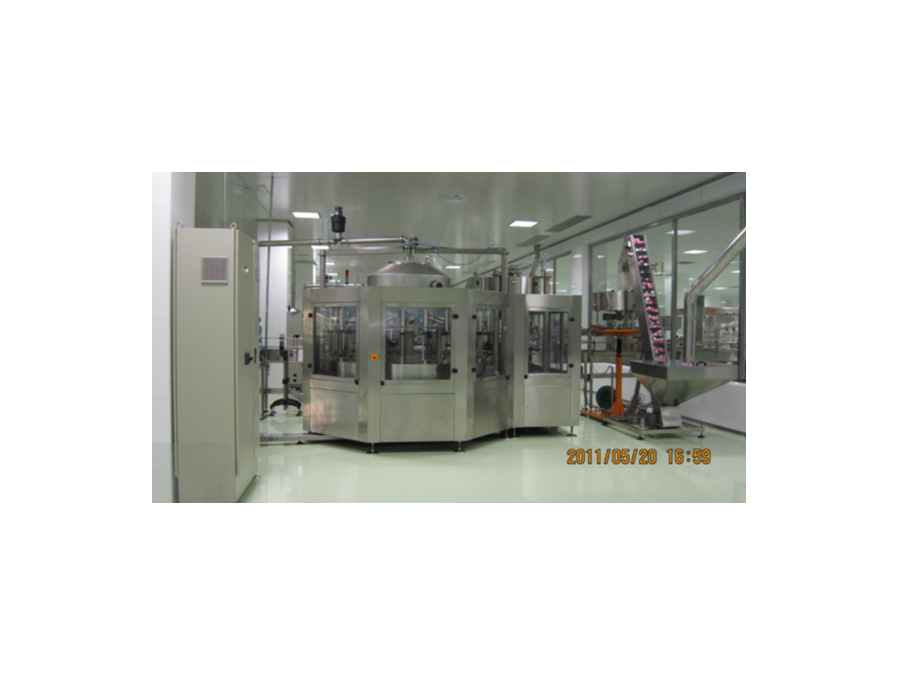

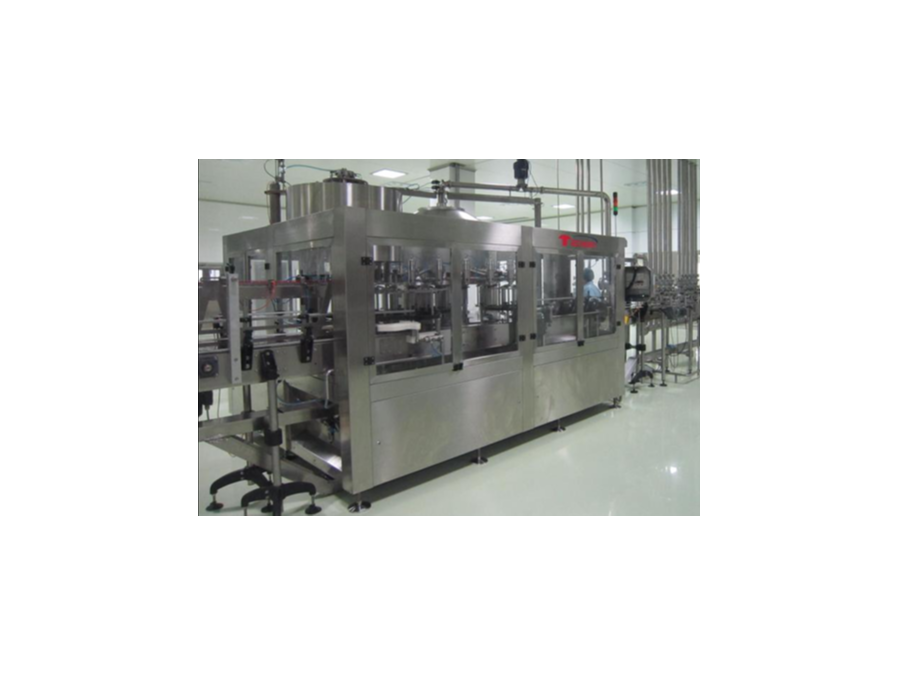

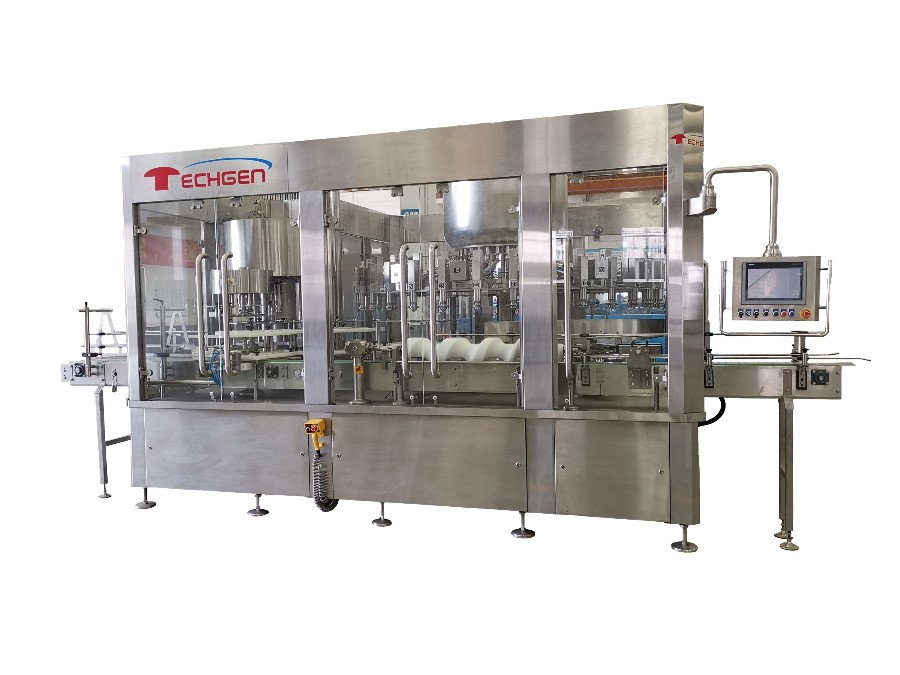

3. Linear weighing and filling machine Rotary weighing filling/Capping machine Linear flowmeter filling machine( Nitrogen protection Prevent oil oxidation or Liquid nitrogen LN2filling ) In addition to anti-drip leakage edible oil anti-mould edible oil precise filling ( +/- 1g )

4. Photographic visual inspection (bottle cap/Liquid level/The label/Jet code) foreign body detector

5. Laser code printer

6. Automatic ring lifting machine Spider manipulator Put a ring Automatic ring lifting machine

7. Out of the/packing/Sealing machine

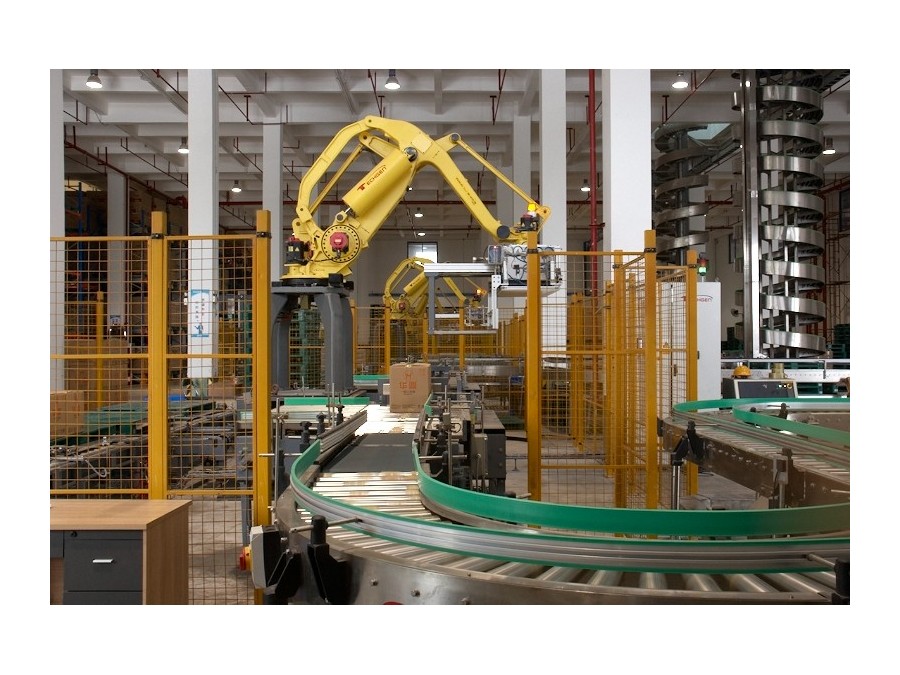

8. Robot palletizer

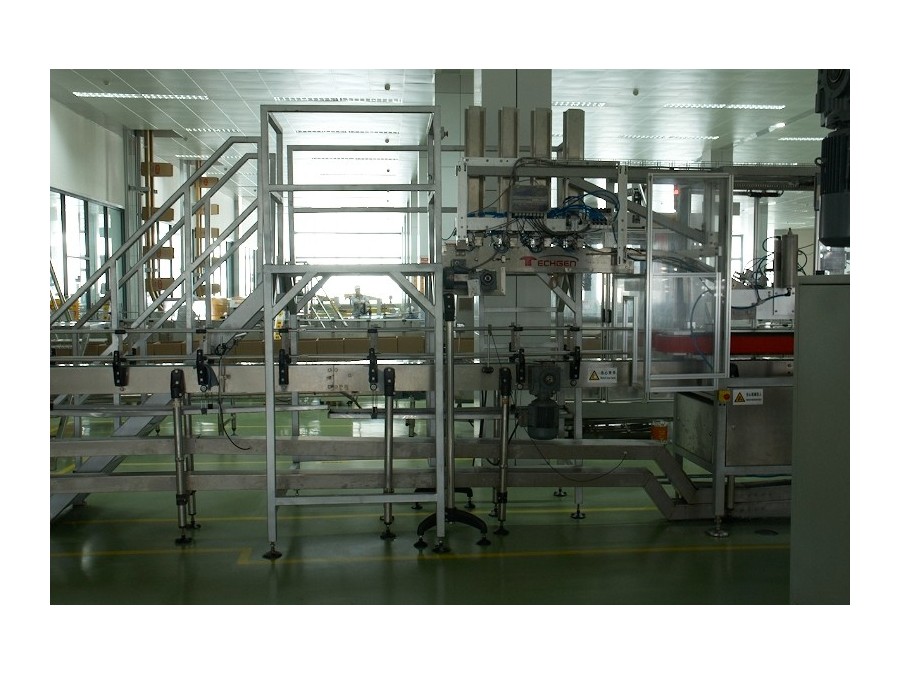

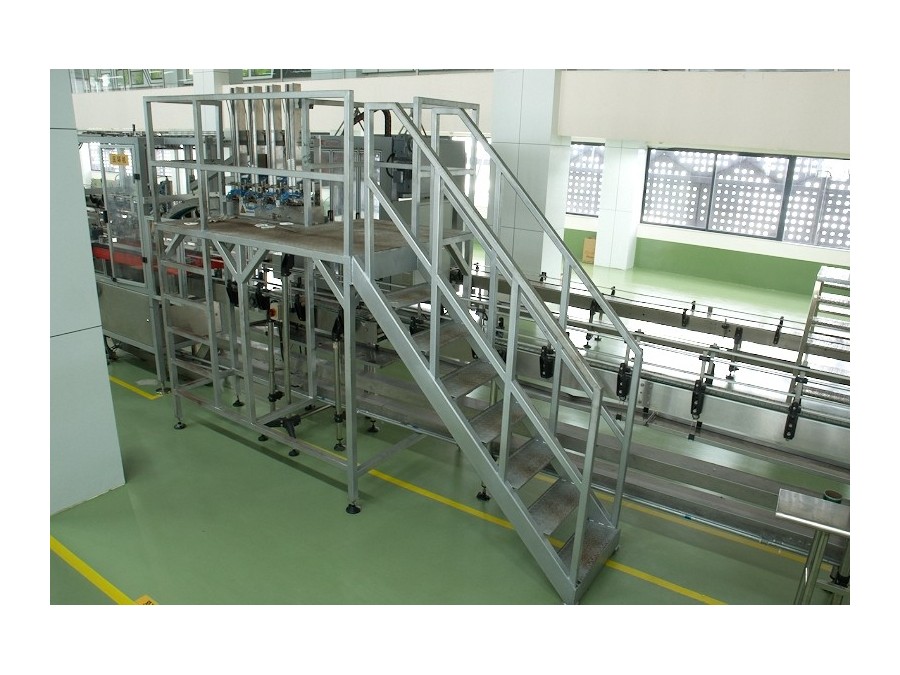

9. Whole factory delivery, Clip bottle conveying, Spiral promotion

10. The full automatic artificial intelligence oil production line ADAPTS to different output And bottle type, Glass bottle PET bottle , plasticHDPEbottle

inquiry

Product details

Technical parameters Technical parameters

Filling quotas	6-32	capacity	10-120 BPM(Depending on material and filling volume)
Filling range	0.25L-20L	Filling accuracy	± 1 g(5LσValue)
The engine power	3-15kw	Air pressure	0.6-0.8 MPa
Gas consumption	600-900NL/MIN	Height of operating surface	1500 mm
Machine size (lengthwideHigh)		The material	304 316Stainless steel

Electrical configuration Electrical configuration

PLC	Siemens	Touch screen	Siemens
Pneumatic components	SMC	The circuit breaker	Schneider of France
The inverter	Danfoss, Denmark	Photoelectric sensor	Germany Lloyd test
Switch power supply, button, alarm light	Schneider of France

Product features Product features

High quality material

Material contact parts are made of stainless steelSUS316orSUS304;
Double speed filling

Filling valve adopts double speed filling, with fast filling and slow filling function;
One key operation

Adopt motion controller andHMIMan-machine operation interface, parameters can be called by one key in the operation interface;
High filling precision

High precision electronic scale, high filling precision;
No bottle no filling

The bottle feeding system adopts photoelectric detection, so that there is bottle filling, no bottle filling;
Drip tight

Anti-drip, anti-splash design, can effectively solve the phenomenon of oil dripping.
To adapt to the diverse

Filling machine has lifting adjustment device, suitable for different bottle filling.
Cleaning without dead Angle

Material tank with cleaning device, easy to clean without dead Angle, suitable for a variety of material production;
To reduce pollution

The filling gland is carried out synchronously to reduce pollution and ensure food installation.

Product advantage Product advantages

: High filling precision

Can reduce material loss for customers, reduce production costs;

: Reduce artificial

Mechanical replacement of labor while reducing the intensity of personnel work, effectively solve the problem of difficult recruitment of enterprises;

: To ensure the quality

Fully closed filling environment, reduce material and external contact, avoid foreign matter, ensure product quality and safety.
