Lubricating oil filling machine

Jiji lubricating oil filling machine can be divided into two series: straight line and rotating series, with high measuring accuracy, and can adapt to various bottle types at the same time, easy adjustment. It can meet the market demand of high output, and the highest rated output can meet the production. Linear weighing and filling machine or rotating weighing and filling machine with high precision Explosion-proof design suitable for all kinds of sticky scheduling (pressure system) suitable for different production bottle type

inquiry

Product details

Technical parameters Technical parameters

Filling quotas	10 ~20	capacity	1000~6000BPH (Depending on filling capacity)
Filling range	0.9L-5L	Filling level accuracy	±2g(5LδValue)
The engine power		Air pressure	0.6-0.8MPa
Gas consumption	600NL/MIN	Height of operating surface	1500±50mm
Machine size (lengthwideHigh)	416031304240mm(20Head rotary filling machine)	The material	304Stainless steel

Electrical configuration Electrical configuration

PLC	Siemens	Touch screen	Siemens
Pneumatic components	SMC	The circuit breaker	Schneider of France
The inverter	Danfoss, Denmark	Photoelectric sensor	Germany Lloyd test
Switch power supply, button, alarm light	Schneider of France

Product features Product features

High quality material

1Material contact parts are made of stainless steelSUS304Material;

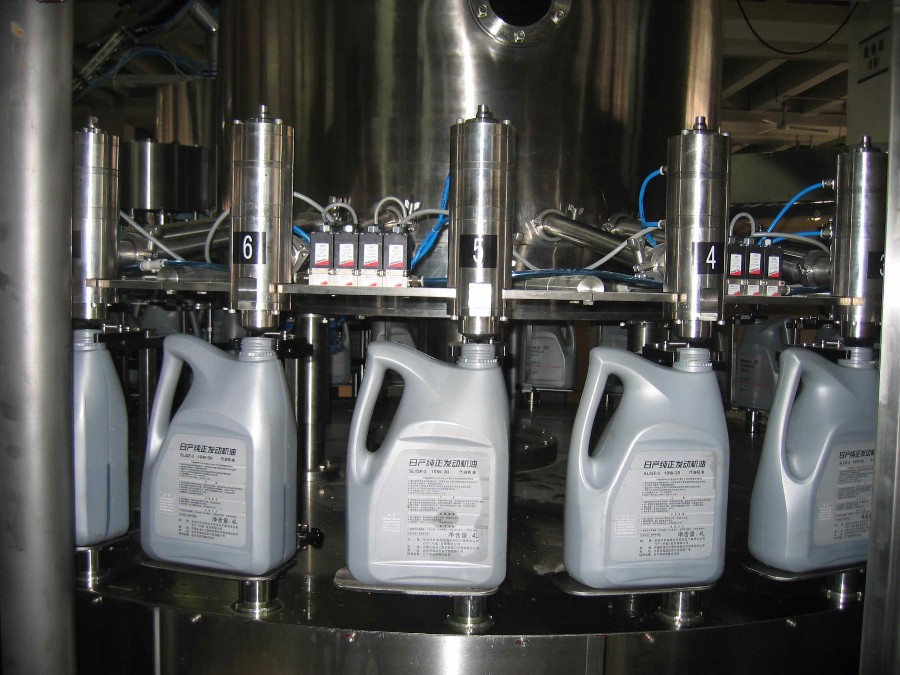

Pressure filling

Using pressure filling, improve filling speed;
Double speed filling

Filling valve adopts double speed filling, with fast filling and slow filling function;
One key operation

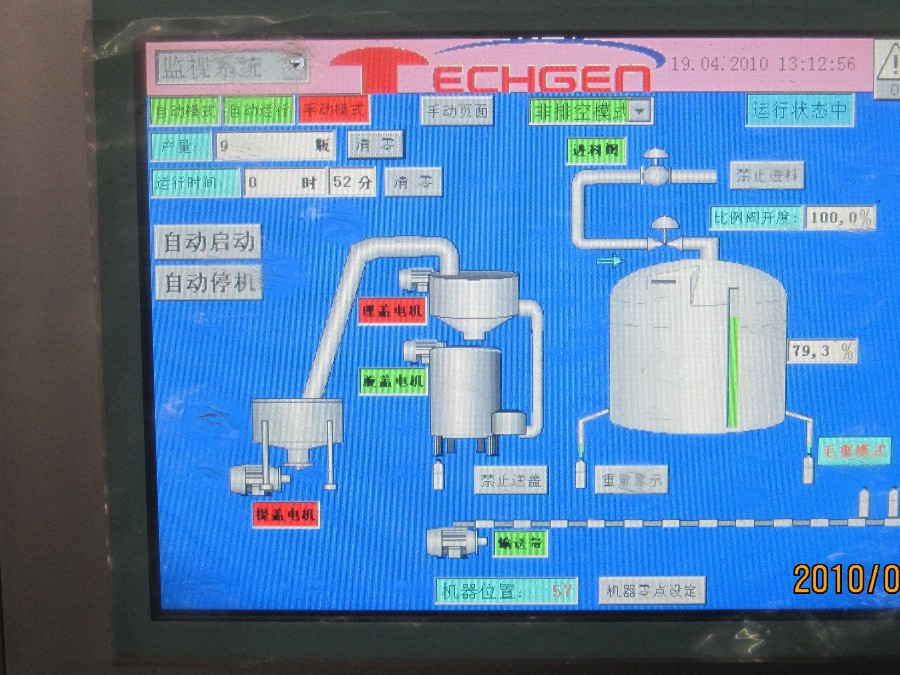

4, using motion controller andHMIMan-machine operation interface, parameters can be called by one key in the operation interface;
High filling precision

High precision electronic weighing filling, filling precision;
No bottle no filling

Into the bottle with photoelectric detection system, so that there is bottle filling, no bottle filling, high production efficiency;
A variety of capacity

The working height of the equipment has a lifting and adjusting device, which is suitable for the production of various volumetric bottles.
Convenient cleaning

The material tank has a cleaning device, easy to clean without dead Angle, suitable for different types of lubricating oil material filling;
To reduce pollution

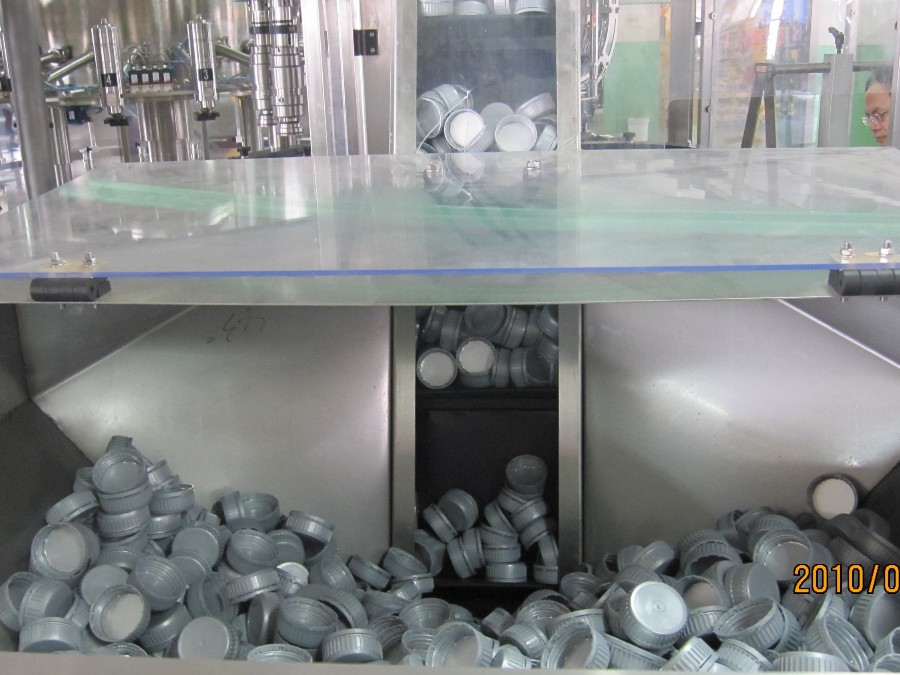

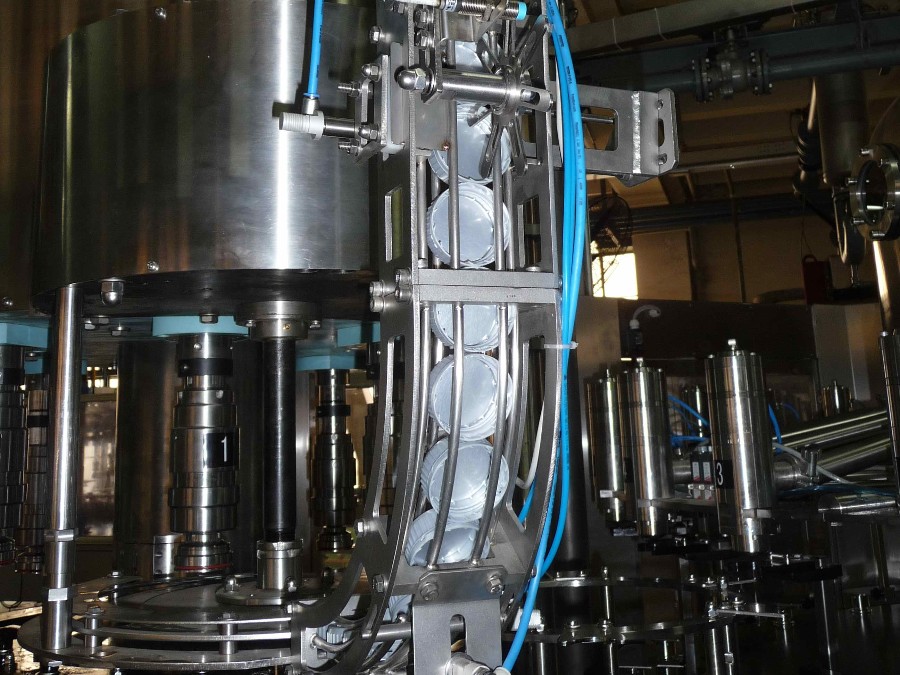

Filling and capping are completed synchronously to reduce pollution and ensure product quality.

Product advantage Product advantages

: High filling precision

Can reduce material loss for customers, reduce production costs;

: Reduce artificial

Mechanical replacement of labor while reducing the intensity of personnel work, effectively solve the problem of difficult recruitment of enterprises;

: To ensure the quality

Fully closed filling environment, reduce material and external contact, avoid foreign matter, ensure product quality and safety.
